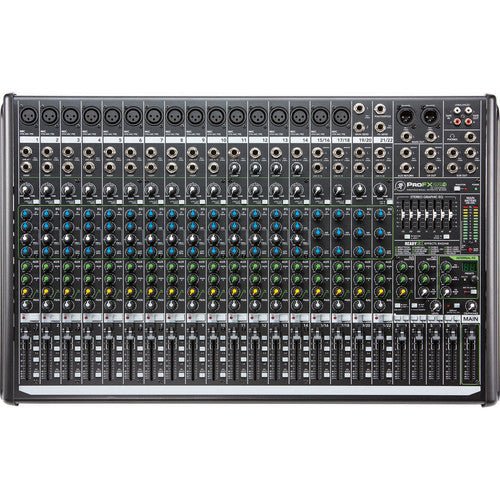

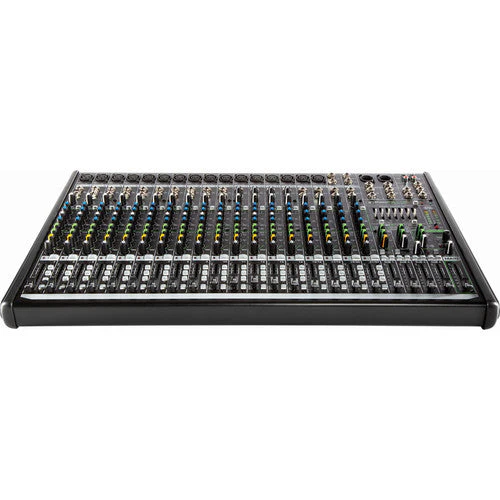

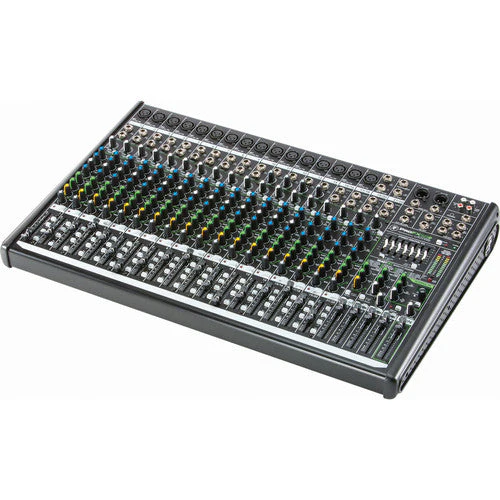

Mackie ProFX22v3 22-Channel 4-Bus FX Mixer with USB

The ProFX22v2 22-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 16 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 2 aux sends, and an FX out for feeding external processors, the ProFX22v2 offers professional features to suit a wide variety of configurations.

In addition to the mic inputs, the ProFX22v2 includes 22 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.

The ProFX22v2’s effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.

Features at a Glance

• 16 low-noise Vita mic preamps
• ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
• Single-knob channel compression for smooth, even dynamic control (ch. 11-14)
• 7-band graphic EQ for tuning mains or monitors
• Built-in USB interface to record the show or provide music playback
• 4 flexible subgroups for professional mix management
• 2 aux outputs for monitor mixes, fill speakers and more
• 3-band EQ with sweepable mids on mono channels
• 22 high-headroom line level inputs
• Individual channel mutes and overload indication
• 100 Hz low-cut filters per channel (18 dB/octave)
• Channel inserts for connecting outboard processing (ch. 1-10)
• 60mm faders for input channels, subgroups, and main masters
• 48V phantom power for connecting condenser mics
• FX mute with remote control via footswitch
• Break switch mutes all channels for music playback between sets
• Control room / headphone outs with level control
• Balanced XLR and balanced/unbalanced 1/4″ main outputs
• Built-in USB recording interface with simple setup via Mac or PC
• Choose to record subgroups 1/2 or main L/R mix
• Separate USB input level control to mains
• USB routable to full-featured channel strip
• For live recording and home studios
• Stream playback music for live or studio applications
• Includes user-friendly Tracktion recording software
• Solid steel chassis protects your investment

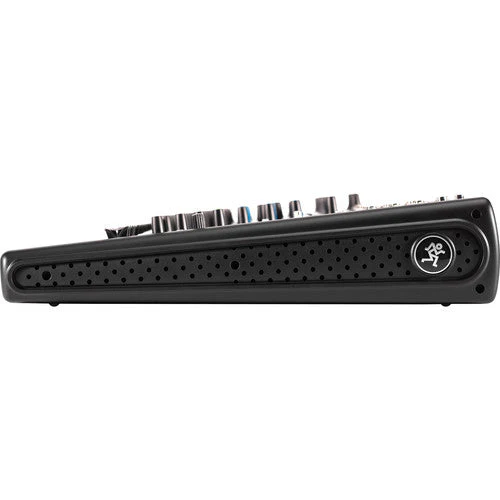

• Tough ABS side protection
• Robust internal multi-voltage power supply
